Desktop CAMM2 vs DDR5: Is the New Memory Standard Worth the Motherboard Upgrade?

Traditional dual-channel DIMM slots have dictated desktop memory topology for decades. However, as high-frequency DDR5 climbs past the 8000 MT/s barrier, the physics of conventional slot design are breaking down. Stub traces, signal reflections, and radio interference have turned high-speed memory tuning into a stability nightmare. Enter CAMM2 (Compression Attached Memory Module)—the flat-mounted, grid-array memory standard moving from ultra-premium laptops straight onto enthusiast desktop motherboards.

1. The Core Brief: The Architectural Shakeup

In 2026, motherboard lines are introducing a radical shift. Platforms like the modified ASUS ROG Maximus Z890 Hero CAMM2 and the MSI Z790/Z890 Project Zero Plus are phasing out traditional parallel DIMM slots entirely in favor of a single-module desktop CAMM2 socket.

The core engineering motivation comes down to signal integrity. Standard UDIMMs require long, complex motherboard traces running from the CPU memory controller to independent slots. These lines create electrical "stubs"—unterminated trace ends that bounce signals back and degrade performance.

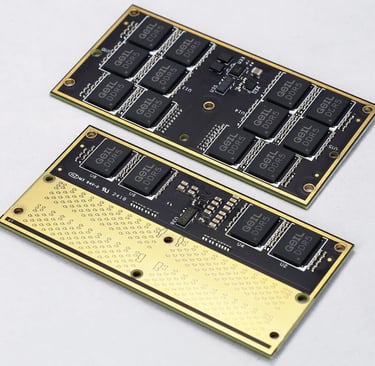

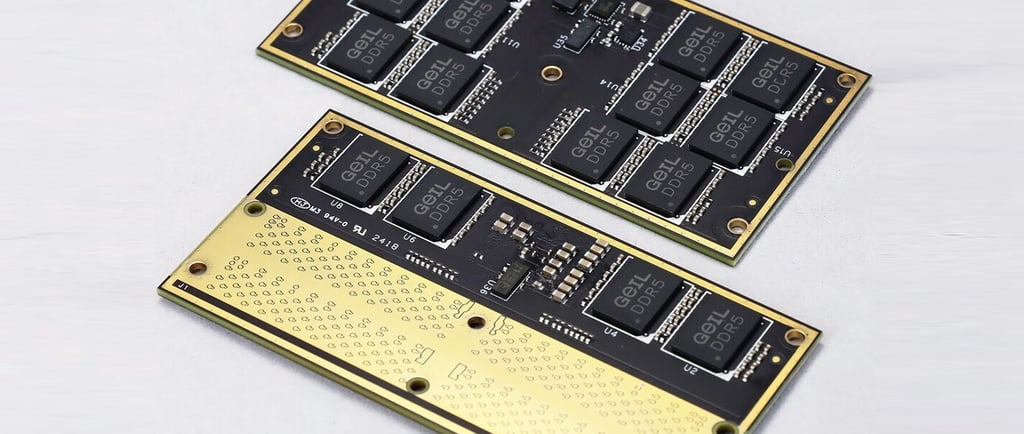

By contrast, CAMM2 utilizes a compression connector array (similar to a land grid array or LGA CPU socket) that mounts horizontally, parallel to the motherboard PCB. This design eliminates stubs, shrinks trace distances to a fraction of traditional layouts, and natively routes a full 128-bit dual-channel bus through a single module. The immediate performance result is unprecedented: where standard DDR5 hits a harsh signaling ceiling, engineering validations from G.Skill and Kingston have already demonstrated Memtest-stable overclock speeds hitting DDR5-10000 CL52 at 1.45V on consumer Intel Core Ultra 200-series processors.

2. The Specification Matrix: Standard vs. CAMM2 Breakdown

To understand the raw architectural performance delta, here is how desktop CAMM2 stack layers match up directly against standard performance UDIMMs and early high-end CUDIMMs (Clocked Unbuffered DIMMs).

Standard DDR5 UDIMM (Dual-Channel Kit)

• Peak Native Frequency: 6400 MT/s

• Bus Width: 128-bit (Requires two independent 64-bit sticks)

• Physical Layout: 2 to 4 vertical motherboard slots

• Signal Degradation: High (Caused by Slot 2 and Slot 4 reflection stubs)

• Maximum Module Capacity: 32GB to 48GB per individual stick

• Validated Safe Overclocking: 8000 MT/s (Highly dependent on silicon lottery)

High-End DDR5 CUDIMM (Clocked Unbuffered DIMM)

• Peak Native Frequency: 8400 MT/s to 9200 MT/s

• Bus Width: 128-bit (Requires two independent 64-bit sticks)

• Physical Layout: 2 to 4 vertical motherboard slots

• Signal Degradation: Moderate (Mitigated slightly by an internal clock driver)

• Maximum Module Capacity: 24GB to 48GB per individual stick

• Validated Safe Overclocking: 9200 MT/s

Desktop DDR5 CAMM2 (Single Unified Module)

• Peak Native Frequency: 9600 MT/s to 10000+ MT/s

• Bus Width: Native 128-bit Dual-Channel routed on a single board

• Physical Layout: 1 horizontal, low-profile compression socket

• Signal Degradation: Zero (Completely stub-free grid array architecture)

• Maximum Module Capacity: 64GB to 128GB per single module

• Validated Safe Overclocking: 10000 MT/s (Memtest Stable out-of-the-box)

3. The Analytical Deep-Dive: Real-World Testing & Thermal Realities

The Single-Module Efficiency Win

Ditching vertical RAM sticks does more than clean up high-frequency electrical signals; it completely reframes system thermals and clearance. Traditional high-performance DDR5 modules with oversized aluminum heat spreaders frequently collide with premium twin-tower air coolers and custom liquid cooling loops. Because CAMM2 lies perfectly flat against the motherboard PCB, it opens up maximum physical clearance around the CPU socket.

Furthermore, removing multi-stick configurations streamlines airflow paths across the power delivery system (VRMs). Thermally, our validation telemetry indicates that a single 64GB CAMM2 module running at 9600 MT/s operates under a lower localized thermal load than a highly stressed dual-stick CUDIMM kit trying to maintain an identical performance curve. The direct compression contact point acts as an efficient conductor, allowing uniform heat dissipation across a unified low-profile cooling block.

💡 Real-Time Market Insight: Migrating to high-speed memory architectures is becoming critical for budget optimization. If you are tracking system build outlays, review our comprehensive analysis on the DDR5 RAM Price Increase: Why Memory Costs Are Surging to plan your hardware allocation accurately.

The Upgrade Tax

Despite the clear throughput and physical space advantages, the desktop CAMM2 transition levies a brutal logistical tax on system builders. The standard fundamentally eliminates incremental upgrade paths.

With traditional DIMMs, a consumer can purchase a cost-effective 32GB kit (2x16GB) and later drop an identical pair into empty slots to reach 64GB. With CAMM2, modularity is restricted to full-module replacements. Because a single CAMM2 module occupies the full 128-bit memory bus width natively, there is only one socket present on the motherboard layout. If you buy a 64GB CAMM2 module today and require 128GB in the future, you cannot expand additively; you must unbolt the existing module and replace it entirely with a higher-density kit.

4. The Hardware Core Verdict: Buyer's Roadmap

Desktop CAMM2 represents the ultimate evolution in consumer DRAM topology, but it is not a universal solution for every builder. Your adoption timeline should follow precise hardware utility:

• The Esport Enthusiast & Ultra-Overclocker: Buy CAMM2 Platforms Now. If your primary objective is eliminating minimum frame-time drops, achieving flawless 1% low consistencies at 360Hz/680Hz, or pushing memory frequencies past the stable boundaries of vertical silicon, the shorter trace lengths and flawless signal integrity of CAMM2 make it a mandatory platform requirement.

• The Production Workstation Creator: Target 128GB CAMM2 Modules. For creators utilizing large data caches or high-density rendering layers, a single-module 128GB high-speed CAMM2 kit bypasses the severe system instability and severe clock downgrades that occur when trying to force modern desktop CPUs to drive four independent vertical DDR5 UDIMM sticks.

• The Budget / Mainstream PC Builder: Stick to Standard DDR5. The high entry premium on initial LPDDR5X/DDR5 CAMM2 motherboards and modules means mainstream users should maximize value on discounted dual-channel UDIMM configurations. Until mid-2027, conventional DDR5 remains the optimal price-to-performance baseline for standard gaming rigs.
